Types: Elbow, tee/cross, cap, stub end, reducer

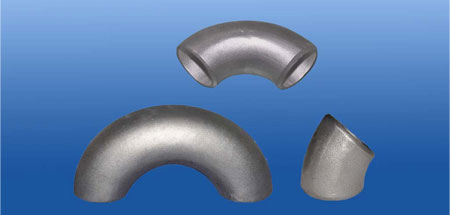

1.1 Elbow
Standards: GB12459, GB/T27684, GB/T13401, HG3651, ASTM B363, ANSI B16.9 etc.
Types: 45 degree, 90 degree, 180 degree elbow
Material: pure & alloy titanium, nickel, monel, zirconium
Specification: NPS1/2”—48” (DN15-1200)
Wall Thickness: Sch5s—Sch160

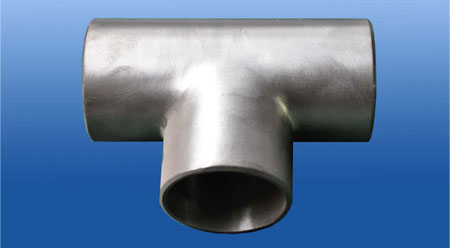

1.2 Tee/cross
Standards: GB12459, GB/T27684, GB/T13401, HG3651, ASTM B363, ANSI B16.9 etc.
Types: straight, reducing
Material: pure & alloy titanium, nickel, monel, zirconium
Specification: NPS1/2”—48” (DN15-1200)
Wall Thickness: Sch5s—Sch160

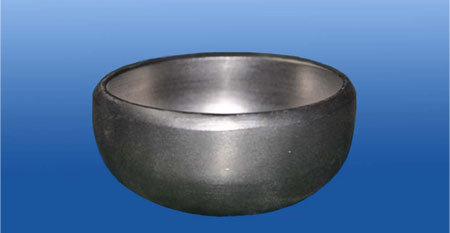

1.3 cap
Standards: GB12459, GB/T27684, GB/T13401, HG3651, ASTM B363, ANSI B16.9 etc.
Material: pure & alloy titanium, nickel, monel, zirconium
Specification: NPS1/2”—48” (DN15-1200)
Wall Thickness: Sch5s—Sch160

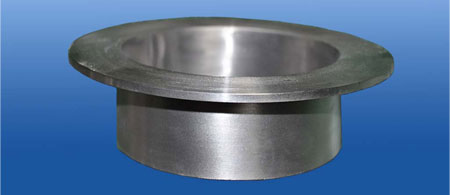

1.4 stub end
Standards: GB12459, GB/T27684, GB/T13401, HG3651, ASTM B363, ANSI B16.9 etc.
Material: pure & alloy titanium, nickel, monel, zirconium
Specification: NPS1/2”—48” (DN15-1200)
Wall Thickness: Sch5s—Sch160

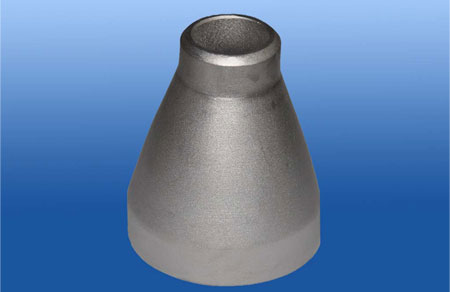

1.5 reducer
Standards: GB12459, GB/T27684, GB/T13401, HG3651, ASTM B363, ANSI B16.9 etc.
Types: concentric, eccentric
Material: pure & alloy titanium, nickel, monel, zirconium
Specification: NPS1/2”—48” (DN15-1200)
Wall Thickness: Sch5s—Sch160
